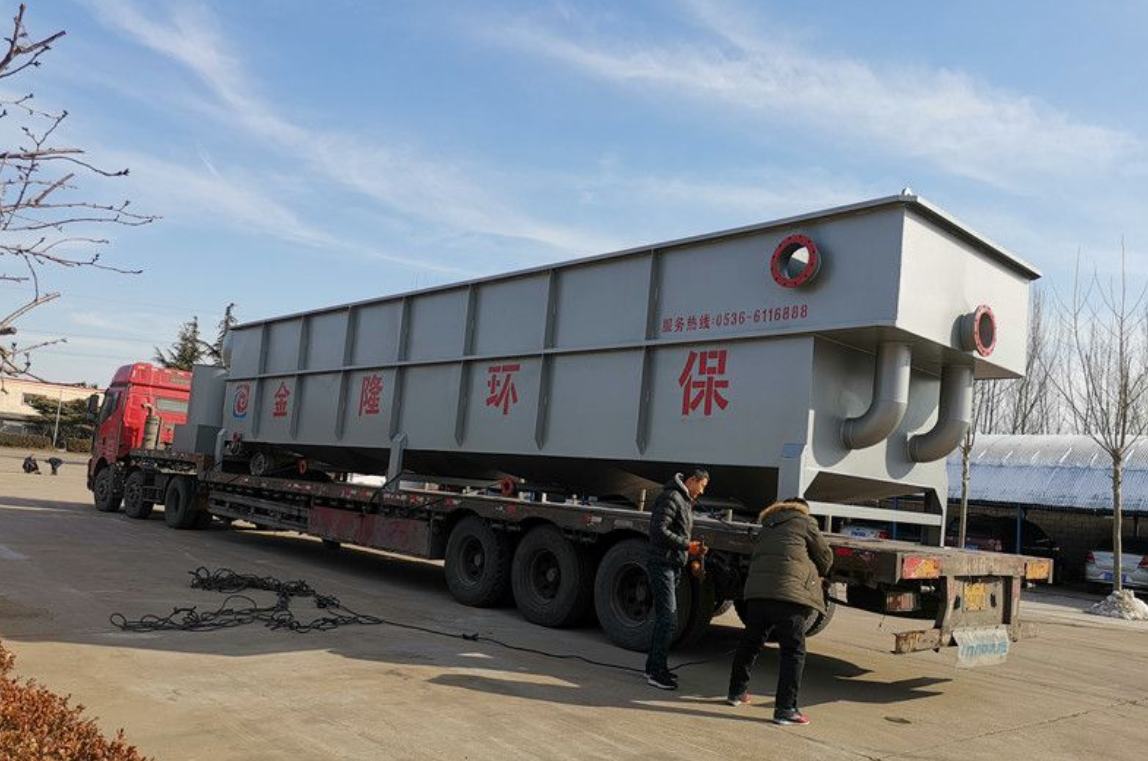

The 200 m3 High Efficiency Dissolved Air Flotation Machine ordered by a large slaughterhouse customer met the factory standard and was delivered successfully.
Dissolved Air floatation machine is mainly used for solid-liquid or liquid-liquid separation. A large number of tiny bubbles are generated in the water through the gas dissolving and releasing system, making them adhere to the solid or liquid particles whose density is close to that of water in the wastewater, resulting in a state where the overall density is less than that of water, and relying on buoyancy to make them rise to the water surface, so as to achieve the purpose of solid-liquid or liquid-liquid separation.
In the field of water treatment, the Dissolved air flotation machine is applied to the following aspects
1. Separation of fine suspended solids, algae and other microaggregates in surface water.
2. Recycle useful substances in industrial waste water, such as pulp in papermaking waste water.
Main Technical Parameters:
The processing capacity of air flotation equipment can be divided into 5, 10, 20, 30, 40, 50, 60, 80, 100, 150, 200, 250, 300m3/h and other specifications, which can also be designed according to user requirements.
Note: The concrete box design can be provided for users according to their requirements, and a complete set of internal accessories can be provided.
The horizontal flow dissolved air floatation machine is a common solid-liquid separation equipment in the sewage treatment industry, which can effectively remove suspended solids, grease, and rubber substances in the sewage, and is the main equipment for sewage pretreatment.
1、 Structural features: the main body of the equipment is rectangular steel structure. The main components are composed of dissolved air pump, air compressor, dissolved air tank, rectangular box, air flotation system, mud scraping system, etc.
2. The bubbles produced by the gas dissolving tank are small, with the particle size of 20-40um, and the floccules are firmly adhered, which can achieve good air flotation effect;
4. Less use of flocculant and lower cost;
5. Operating procedures are easy to master, water quality and quantity are easy to control, and management is simple.
6. It is equipped with a backwash system, and the release device is not easy to block.
Working Principle:
the dissolved gas tank produces dissolved gas water, which is released into the water to be treated by depressurization through the releaser. The air dissolved in the water is released from the water to form 20-40um micro bubbles. The micro bubbles combine with the suspended solids in the sewage to make the specific gravity of the suspended solids less than water, and gradually float to the water surface to form scum. There is a scraper system on the water surface to scrape the scum into the sludge tank. Clear water enters the clean water tank from the bottom through the overflow tank.
Scope Of Use:
1. It is used to remove suspended solids, grease and various colloidal substances in sewage, such as sewage treatment of petrochemical, coal mine, paper making, printing and dyeing, slaughtering, brewing and other industrial enterprises;
2. It is used to recover useful substances, such as the collection of fine fibers in papermaking white water.
